双节距滚子链条参数说明
详细介绍:

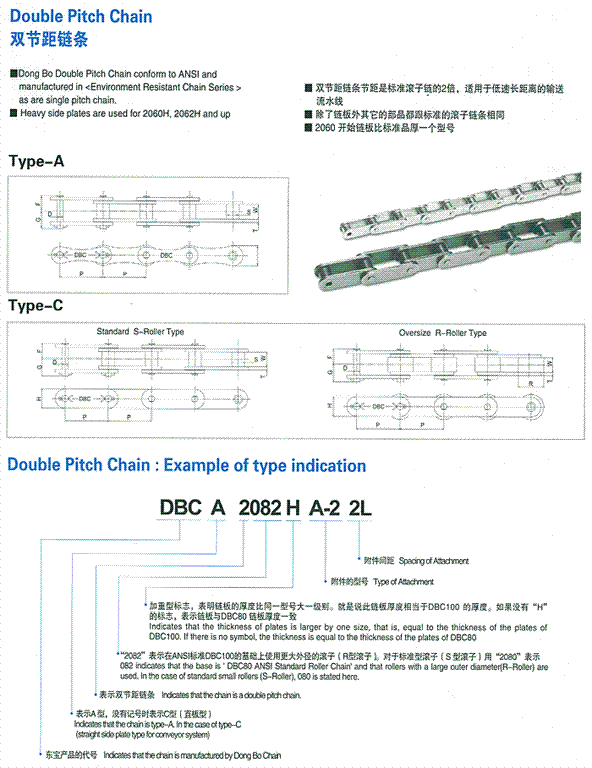

双节距滚子链（C型）是以JIS和ANSI规格为基准的标准滚子链的2倍节距的链条。,主要用于低速传动和搬运,有标准直径S型滚子和、大径R型滚子 双节距附件滚子链是在双节距滚子链上附加附件的链条,主要用于搬送
链号 | 链号 | 节距 | 滚子直径 | 内节内宽 | 销轴直径 | 销轴长度 | 内链板高度 | 链板厚度 | 极限拉伸载荷 | 平均拉伸载荷 | 每米长重 | |
| P | d1mASSx | BSS1min | d2mASSx | L mASSx | Lc mASSx | h2mASSx | t/T mASSx | Qmin | Qo | q | ||
| mm | mm | mm | mm | mm | mm | mm | mm | kN | kN | kg/m | ||
| C208ASS | C2040SS | 25.40 | 7.95 | 7.85 | 3.96 | 16.6 | 17.8 | 12.0 | 1.50 | 8.46 | 10.02 | 0.42 |
| C208BSS | 25.40 | 8.51 | 7.75 | 4.45 | 16.7 | 18.2 | 11.8 | 1.60 | 10.80 | 11.64 | 0.45 | |
| C210ASS | C2050SS | 31.75 | 10.16 | 9.40 | 5.08 | 20.7 | 22.2 | 15.0 | 2.03 | 13.32 | 16.92 | 0.73 |
| C210BSS | 31.75 | 10.16 | 9.65 | 5.08 | 19.5 | 20.9 | 14.7 | 1.70 | 13.44 | 16.50 | 0.65 | |
| C212ASS | C2060SS | 38.10 | 11.91 | 12.57 | 5.94 | 25.9 | 27.7 | 18.0 | 2.42 | 19.08 | 22.08 | 1.02 |
| C212BSS | 38.10 | 12.07 | 11.68 | 5.72 | 22.5 | 25.2 | 16.0 | 1.85 | 17.40 | 19.32 | 0.76 | |
| C216ASS | C2080SS | 50.80 | 15.88 | 15.75 | 7.92 | 32.7 | 36.5 | 24.0 | 3.25 | 34.02 | 39.42 | 1.70 |
| C216AHSS | 50.80 | 15.88 | 15.75 | 7.92 | 36.2 | 39.4 | 24.0 | 4.00 | 34.02 | 42.00 | 2.17 | |
| C216BSS | 50.80 | 15.88 | 17.02 | 8.28 | 36.1 | 39.1 | 21.0 | 4.15/3.1 | 36.00 | 43.68 | 1.75 | |
| C220ASS | C2100SS | 63.50 | 19.05 | 18.90 | 9.53 | 40.4 | 44.7 | 30.0 | 4.00 | 53.10 | 61.56 | 2.55 |
| C220BSS | 63.50 | 19.50 | 19.56 | 10.19 | 41.3 | 45.0 | 26.4 | 4.5/3.5 | 57.00 | 64.02 | 2.62 | |
| C224ASS | C2120SS | 76.20 | 22.23 | 25.22 | 11.10 | 50.3 | 54.3 | 35.7 | 4.80 | 76.20 | 88.38 | 4.06 |
| C224BSS | 76.20 | 25.40 | 25.40 | 14.63 | 53.4 | 57.8 | 33.2 | 6.0/4.8 | 96.00 | 106.80 | 4.70 | |
| C228BSS | 88.90 | 27.94 | 30.99 | 15.90 | 65.1 | 69.5 | 36.7 | 7.5/6.0 | 120.00 | 133.20 | 6.23 | |
| C232BSS | 101.60 | 29.21 | 30.99 | 17.81 | ||||||||
